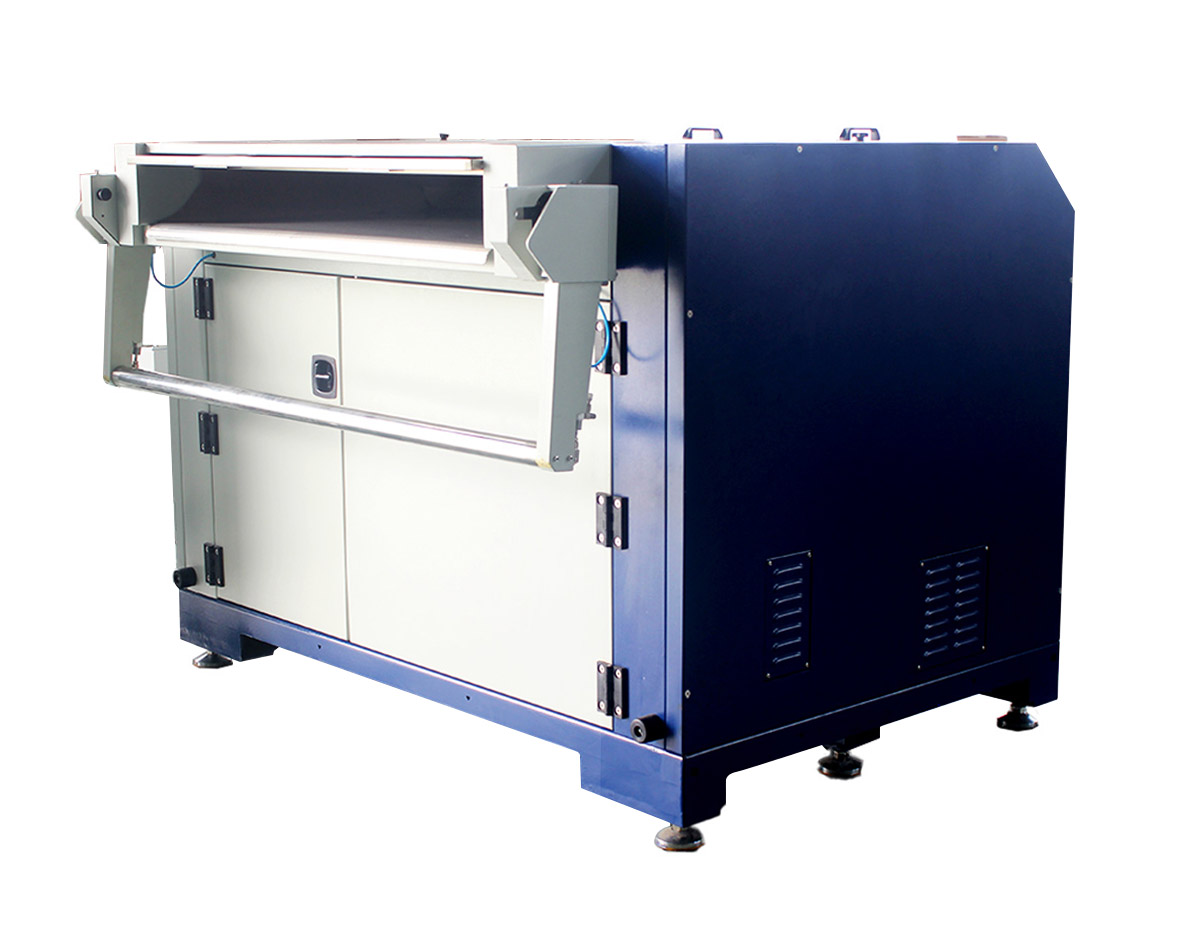

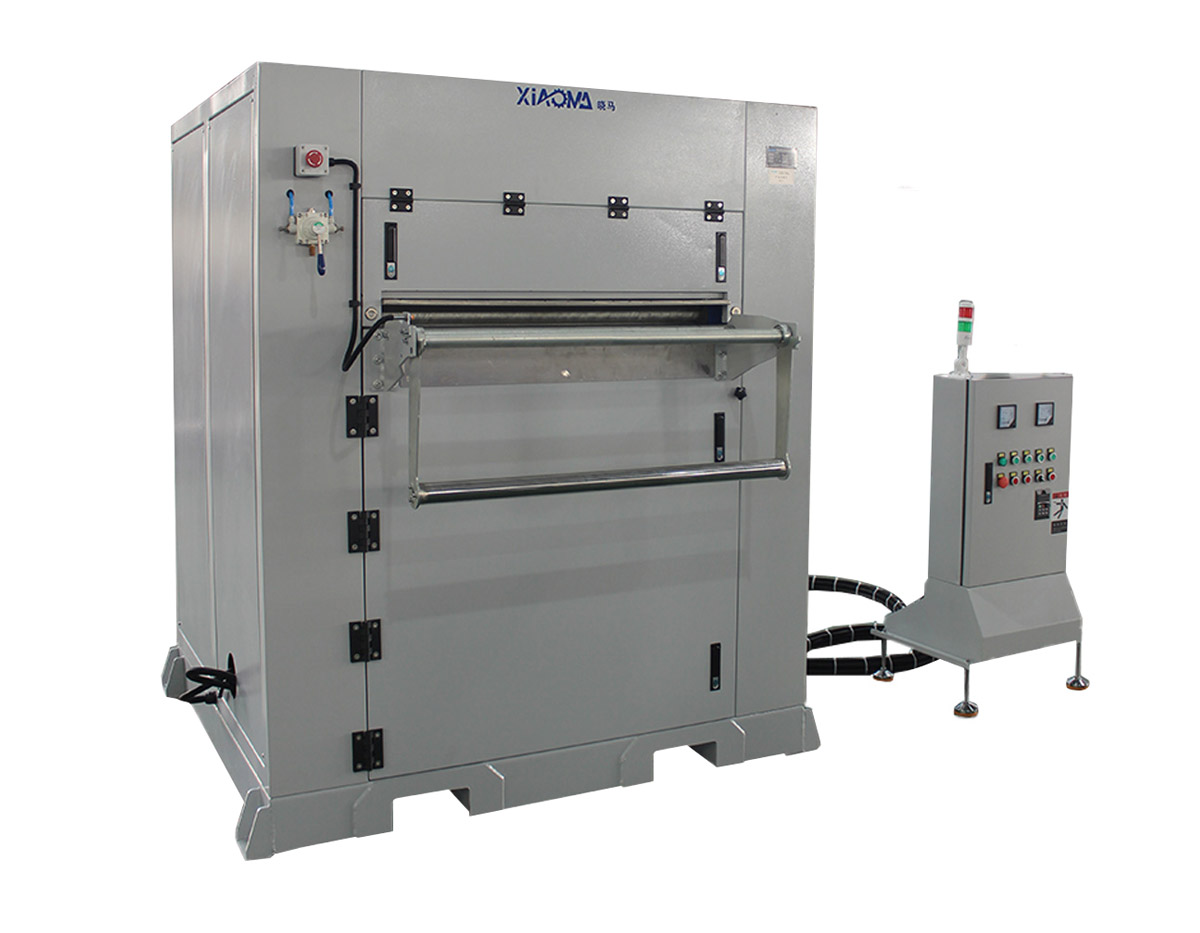

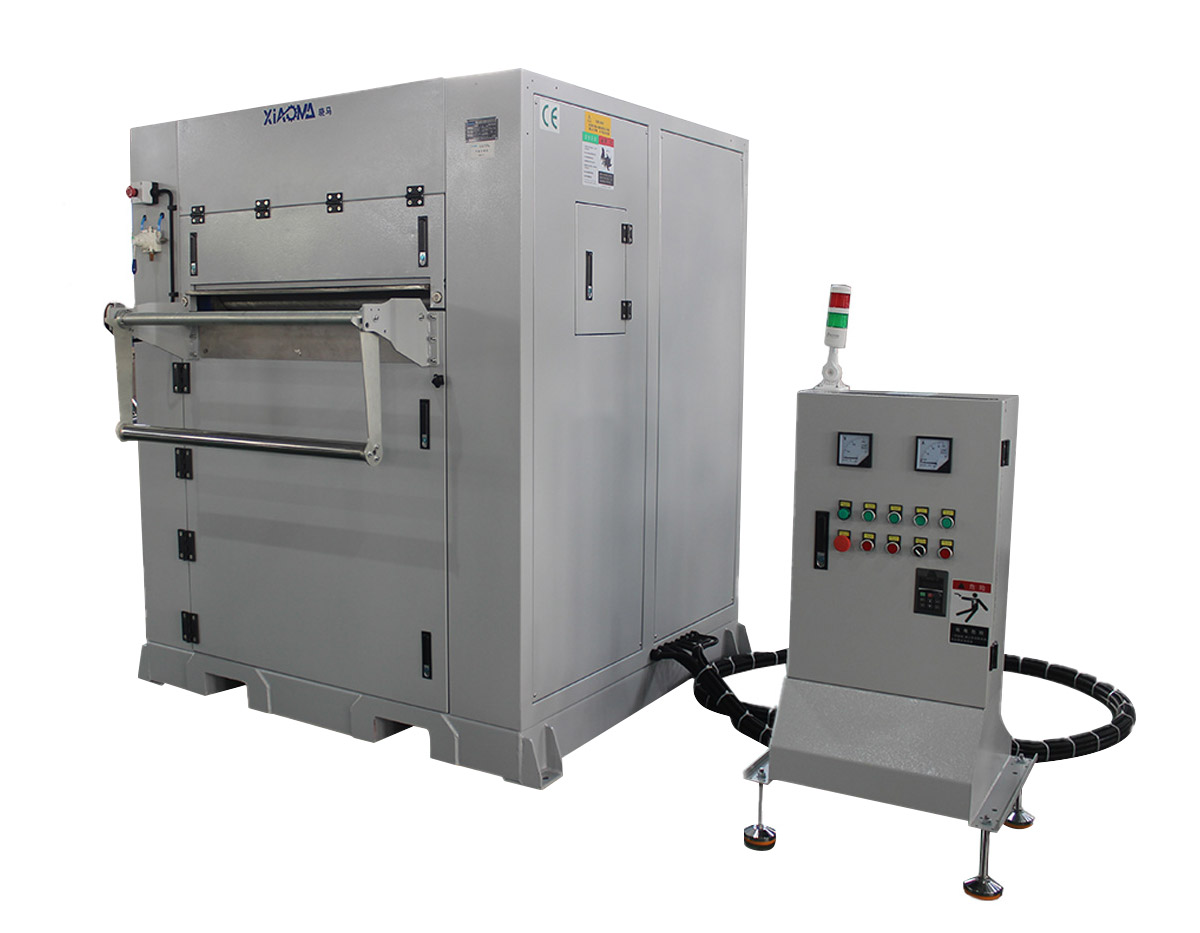

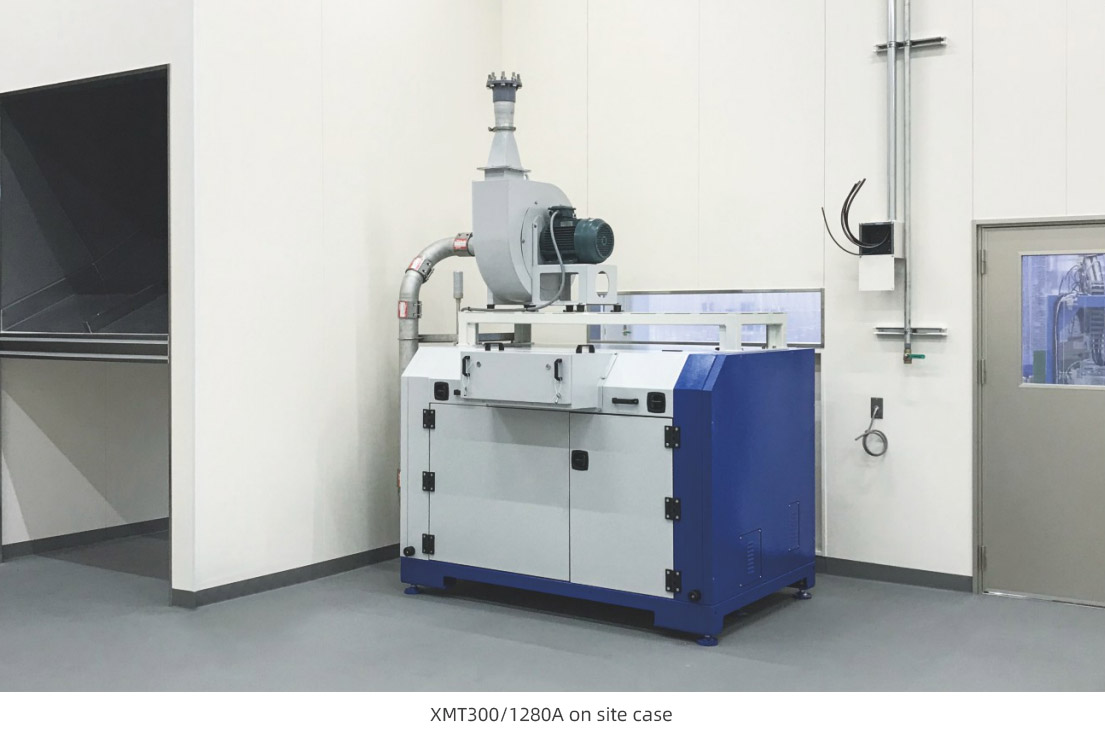

■ The traction crusher integrates crushing, conveying, and storage in a fully endlosed state to avoid pollution, save labor, and meet environmental protection standards.
　■ The machine is placed in the soundproof cover to ensure the reduction of noise when the machine is running.

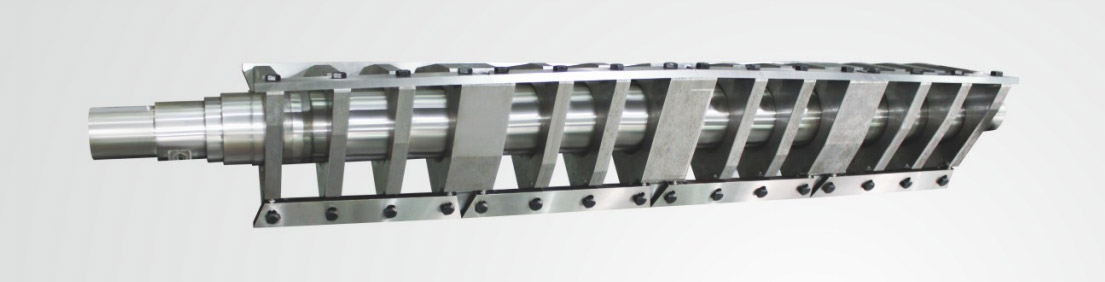

　■ The uniquely designed rotor keeps the rotor's cutters in the best state during the process of crushing materials, reducing the generation of powder.
　■ The thickness range of crushed and recycled scraps is 0.2- 3.5mm.



　It is suitable for PP, PET, PS, PLA, PVC, biodegradable materials and other plastic sheets, plastic packaging (food, eletronics, medical) forming scaps after punching and cutting, and a small amount of defective products for crushing and recydling.

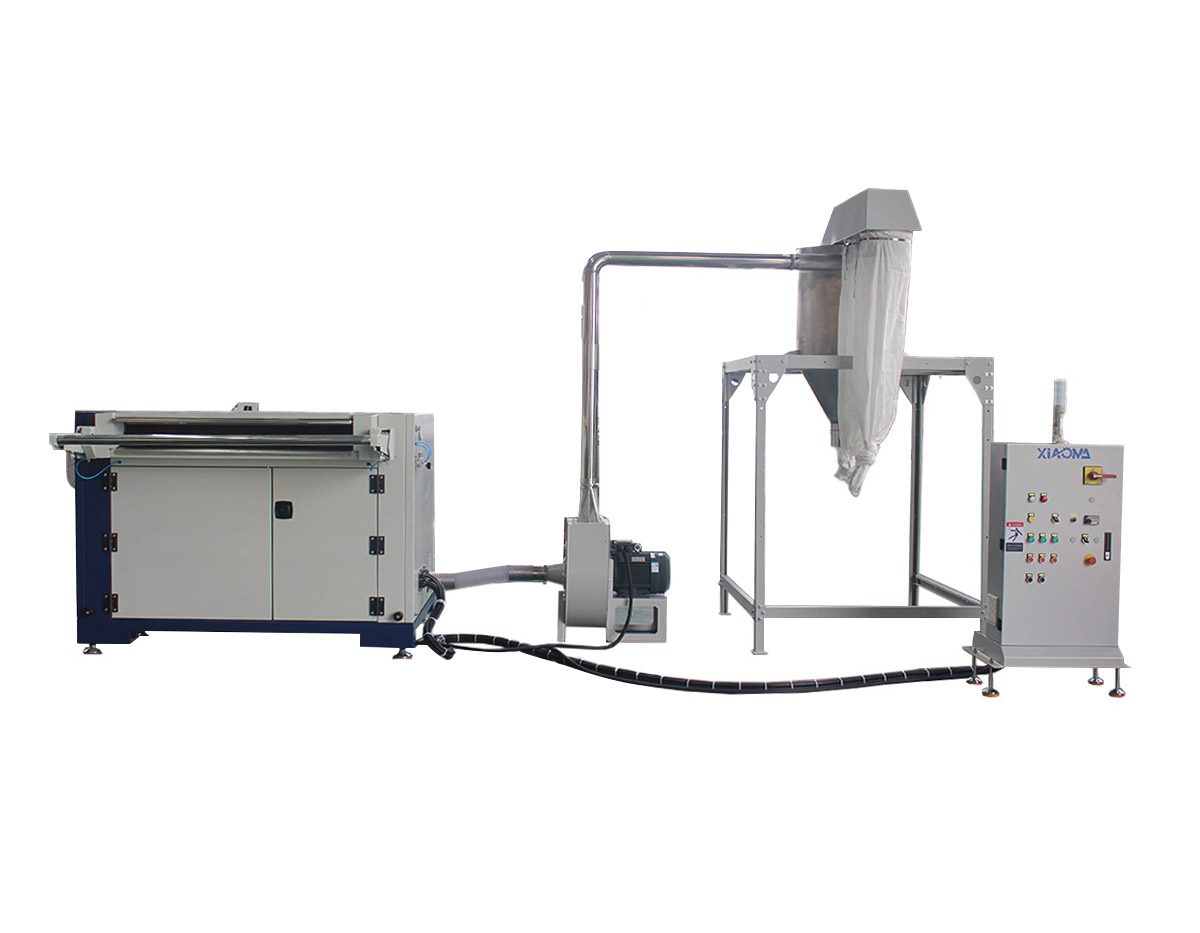

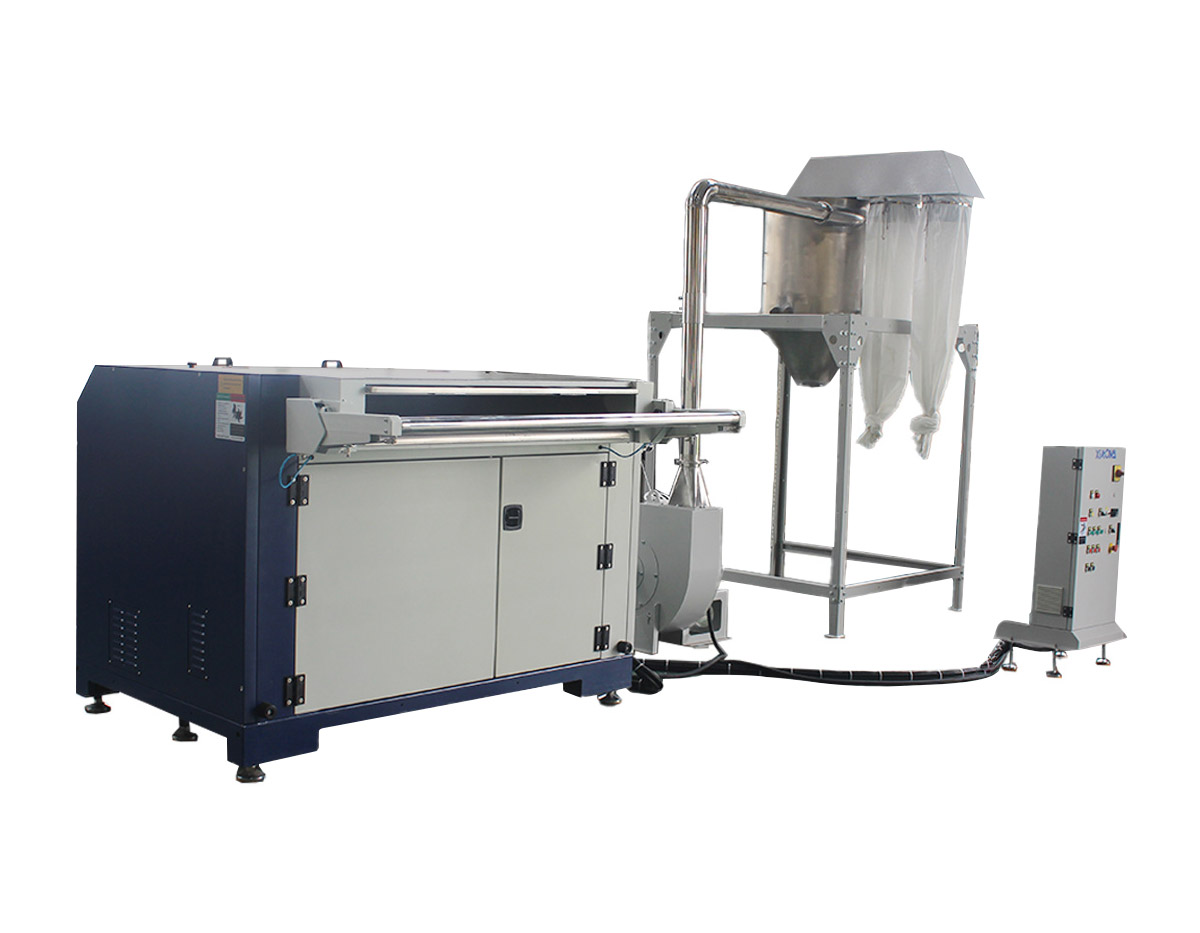

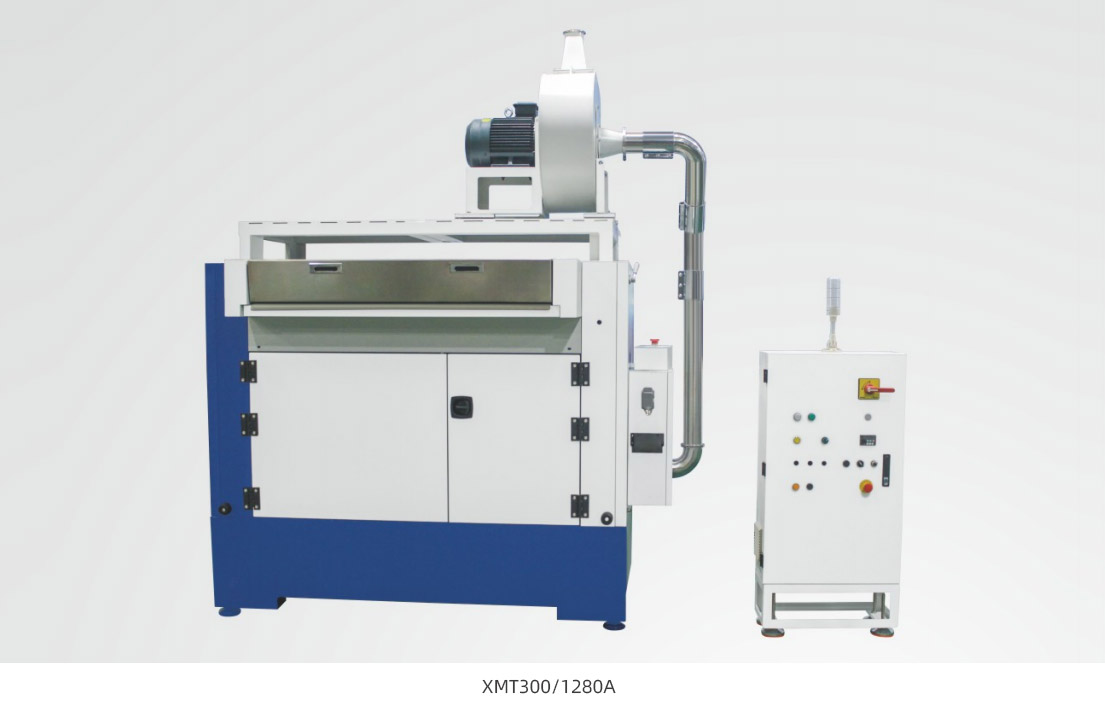

Feed fan
　Adopting the through-pu silent fan developed by our company, using the motor of a famous brand manufacturer, the quality is stable, the specially designed fan blades increase the wind pressure, the conveying capacity is strong, and the movement is stable.

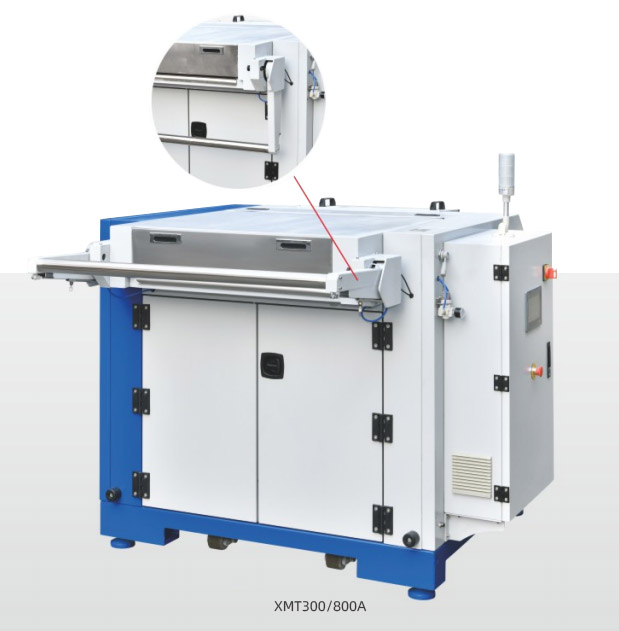

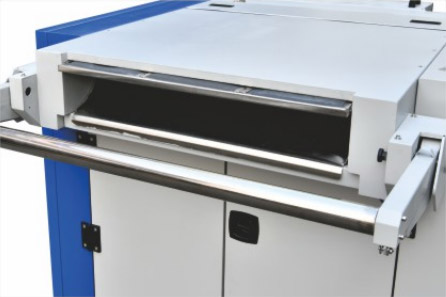

Traction part
　The rller is precision processed with high-strength seamless steel pipe, and then chrome-plated to ensure that it is not rusty and durable. The power part adopts 2 gear reduction motors and frequency converters, which can be used in synchronization with the host. The speed can be adjusted independently according to customer needs. stable qulity.

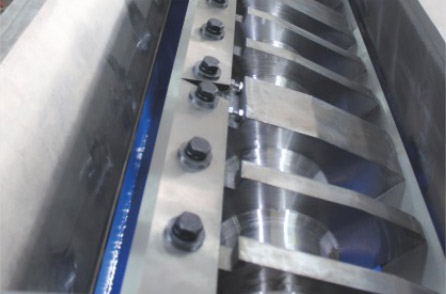

Knives
　Made of highalloy D2 or DC53 material, it has the characteristics of high strength, good toughness, and not easy to break. It guarantees a good blade during work, improves the quality and output of broken partides, and is very convenient for disassembly, repair and maintenance.

Model		XMG 300/400	XMG 300/600	XMG 300/800
Drive power	kw	7.5	11	15
Traction power		0.75*2	1.1*2	1.1*2
Number of rotor knives		6	6	12
Static son tool number		4	4	8
Rotor diameter	mm	Ф300	Ф300	Ф300
Rotor width	mm	820	1000	1280
Manual feeding port size	mm	600*200	1000*200	600*200
Coil entrance size	mm	800*125	1000*125	1270*125
Crushing cavity diameter	mm	300*820	300*1000	300*1280
Screen aperture	mm	10	10	10
Weight	kg	1318	1850	2160
Dimensions	mm	1800*1700*1350	2000*1900*1350	2150*1800*1350

We reserve right to change specifications without prior notice.
