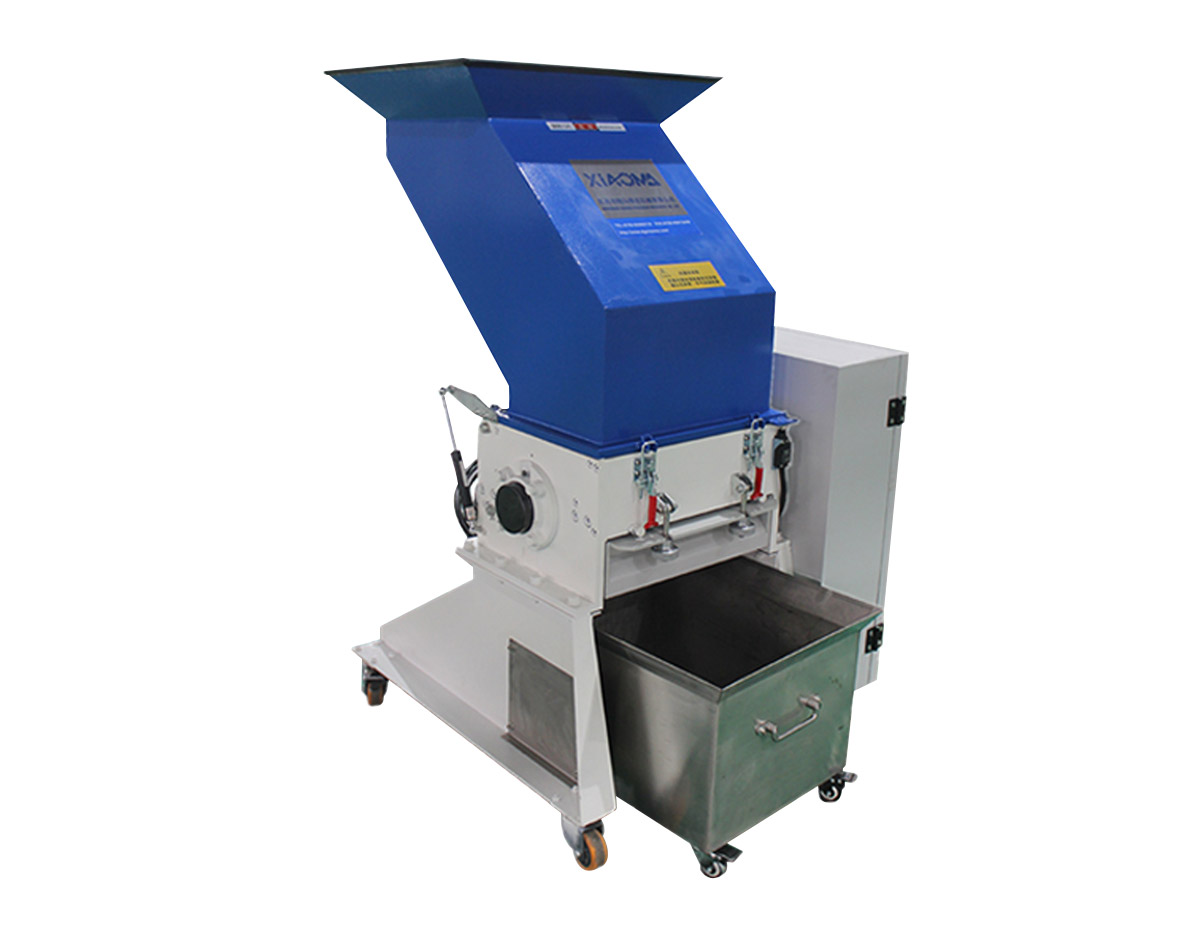

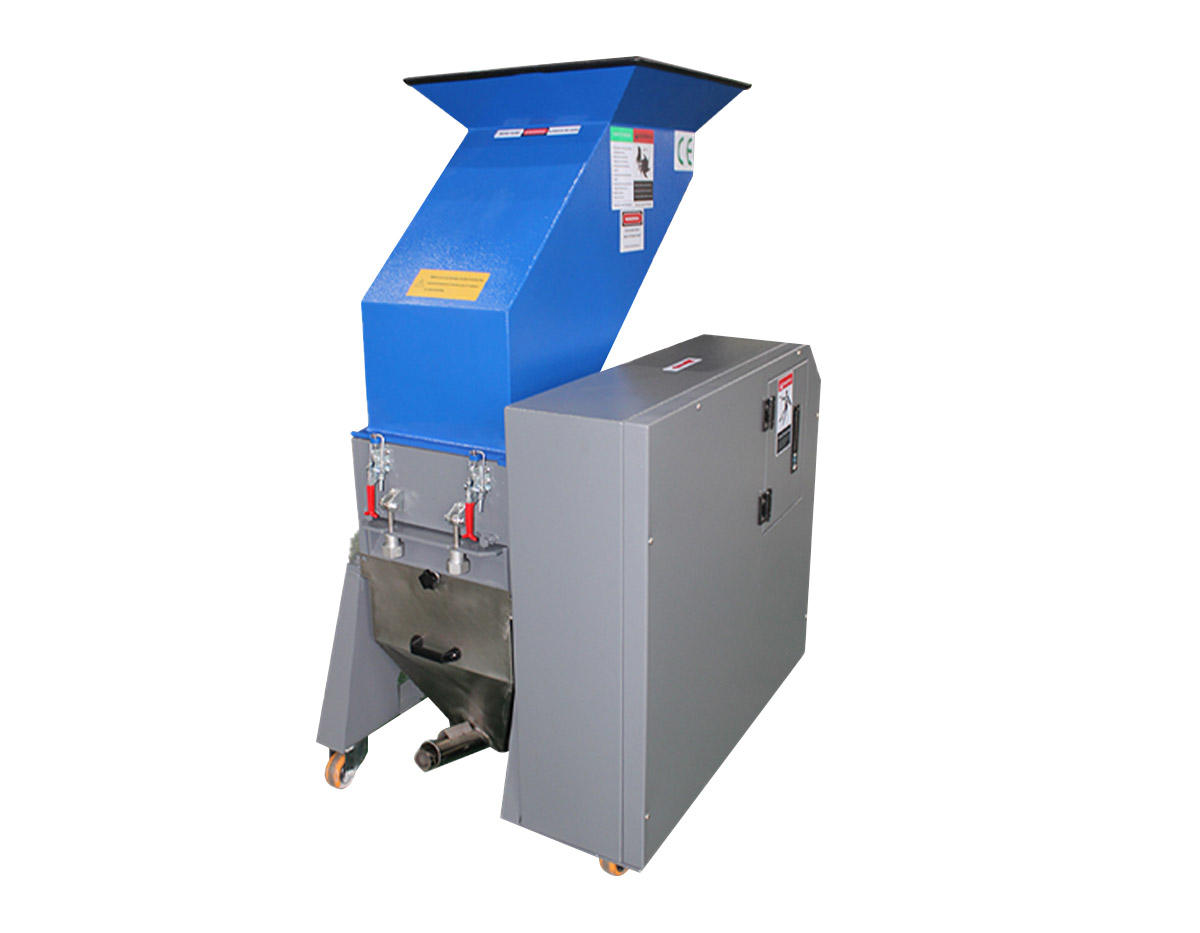

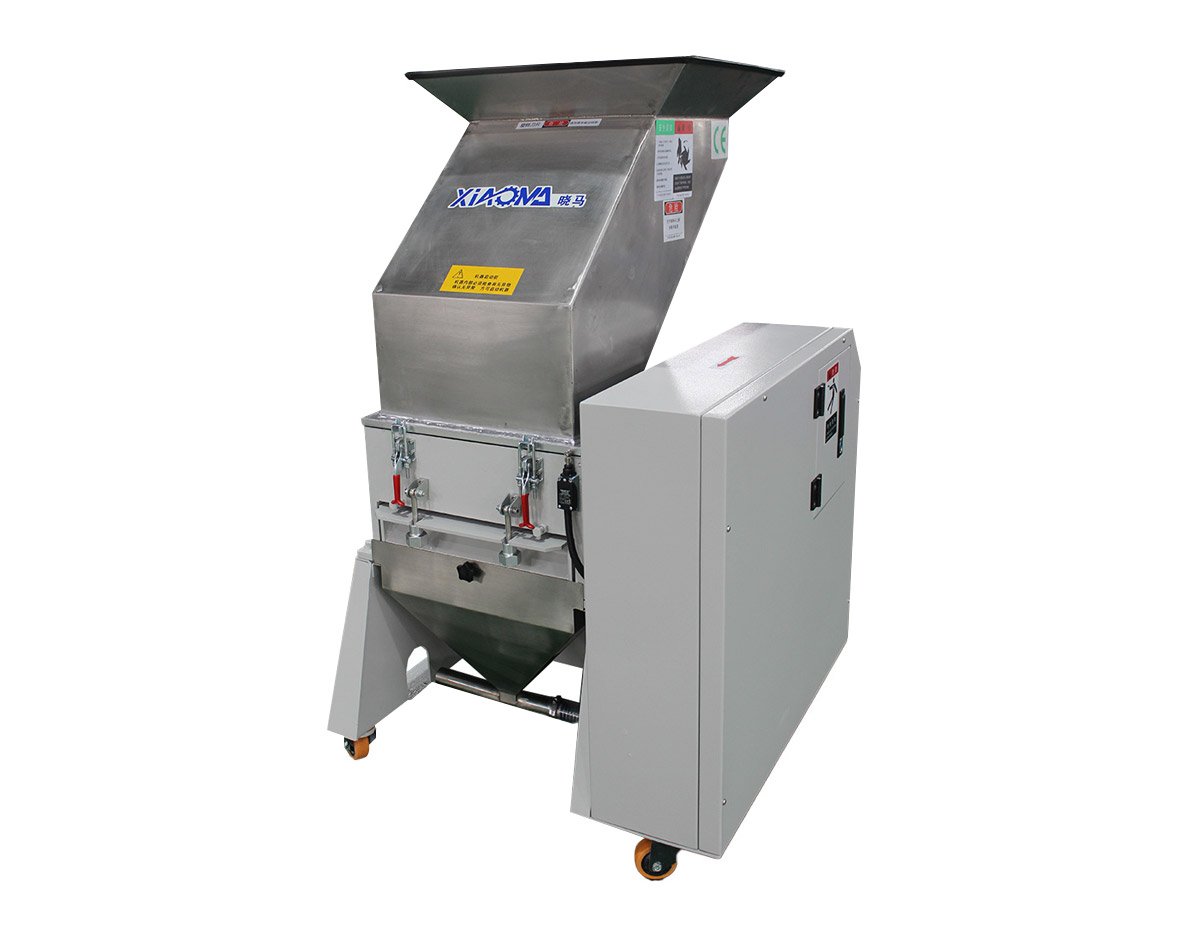

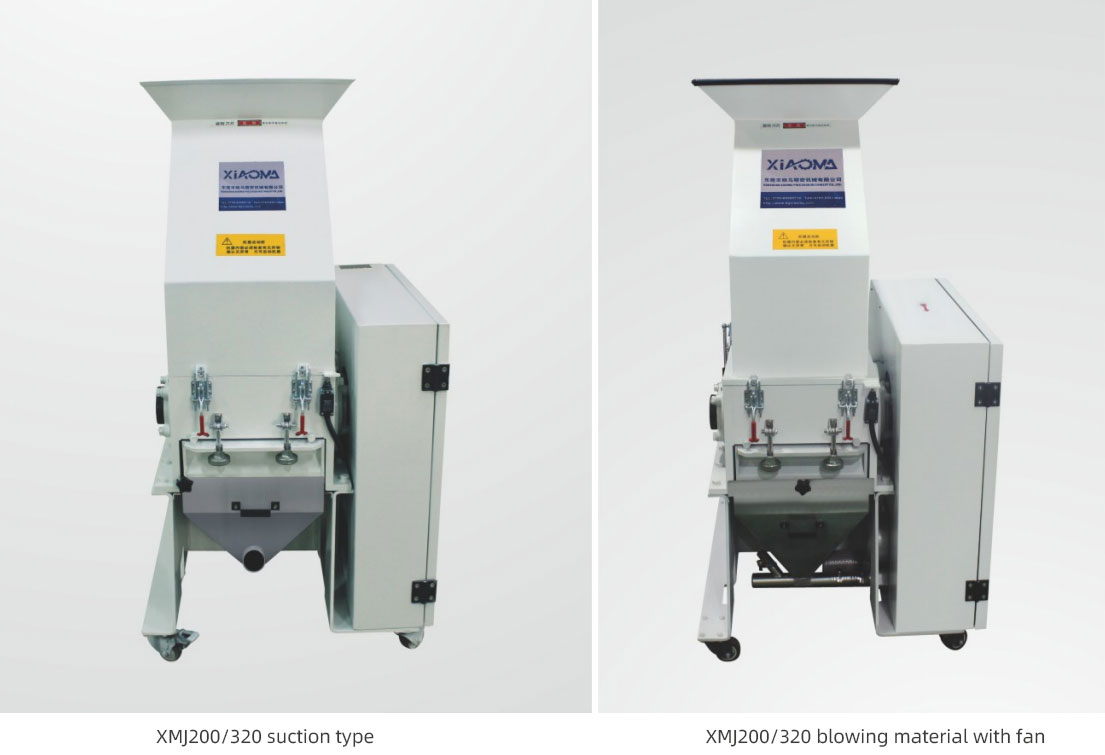

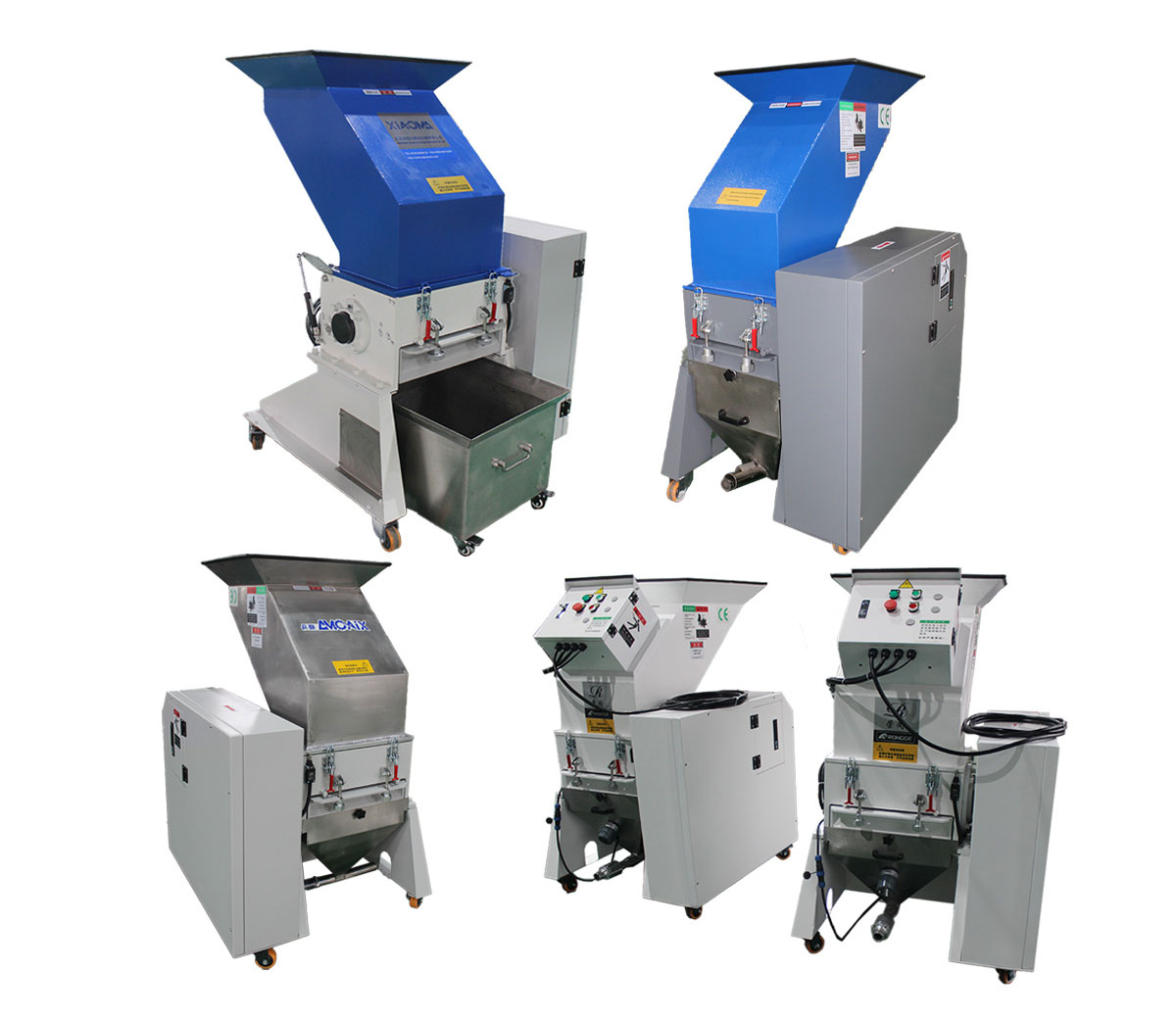

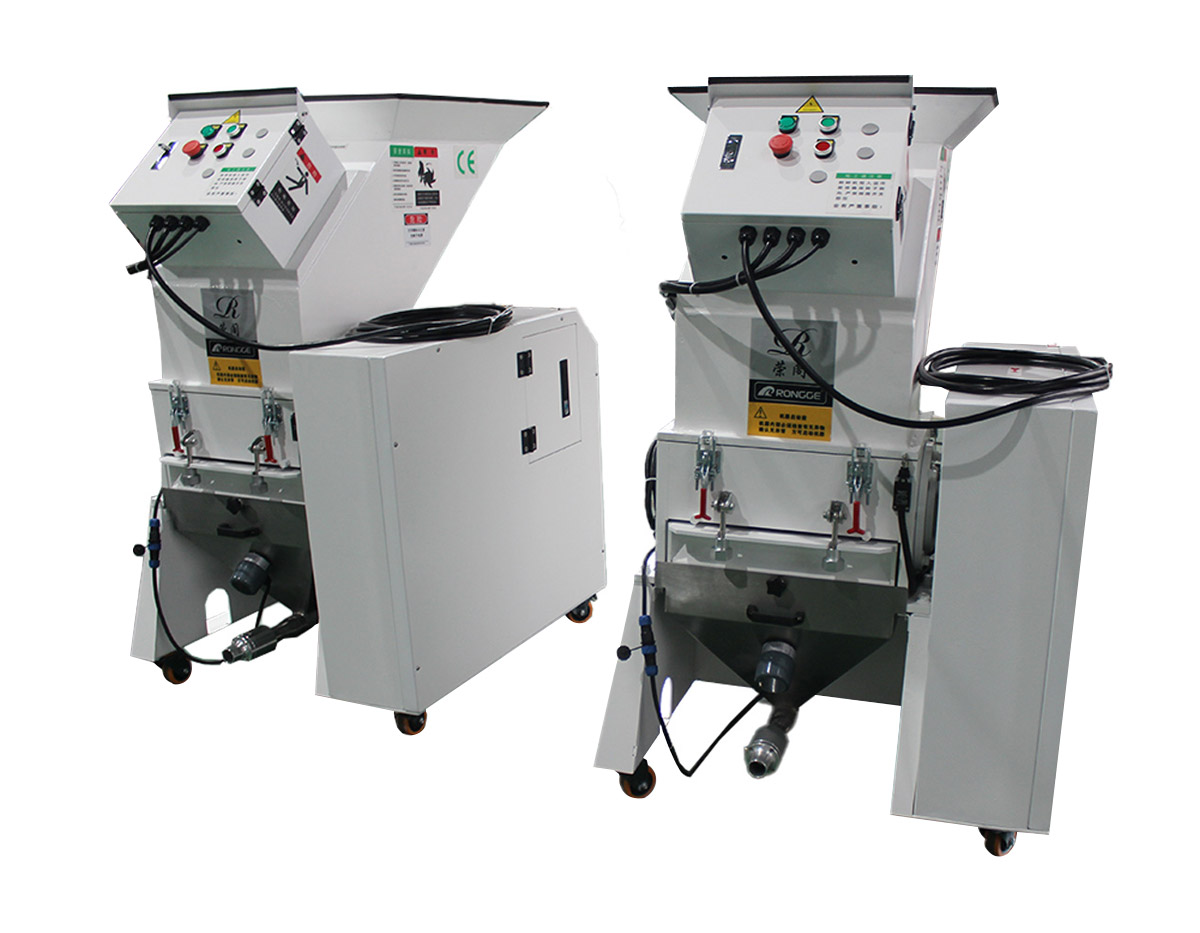

XMJ Medium speed crusher series is xiaoma newly developed models, the models currently produced there XMJ200 / 320 and XMJ200 / 420, the model is the use of a belt transmission mode, there are soundproofing housing, scissors cut special design, the scissors-like tool structure enables the airplane to meet a variety of demanding material crushing.
Depending on the different, XMJ series crusher in the optional use of a variety of options also can be paired with feed fan belt recovering immediately recall the way the series can also be paired with a suction tank / storage tank for use, diverse with a way of making XMJ series crusher also has a wide range of uses.

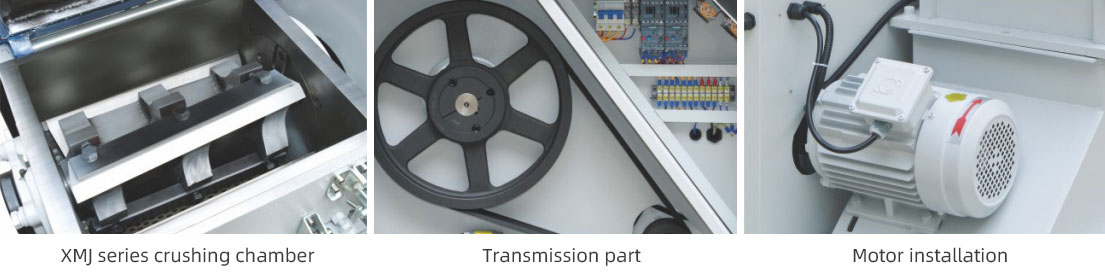

XMJ Series crushing chamber
XMJ series of crushing chamber with bolted steel structure design, tool with high strength SKD-11 material, so that the tool life longer.

Transmission part
In the mode of transmission, the standard European standard pulley is adopted, and the installation of the cone sleeve is very convenient.

Motor installation
External motor through the U-slot in the fixed, easy to adjust the belt tightness.

Model		XMJ200/320	XMJ200/420
Drive power	kw	3	4
Rotor diameter	mm	200	200
Rotor width	mm	316	416
Number knife		3*1	3*1
Number knife		2*1	2*1
Crushing cavity diameter	mm	270*316	270*416
Feeding mouth size	mm	270*316	270*416
Weight	kg	280	350

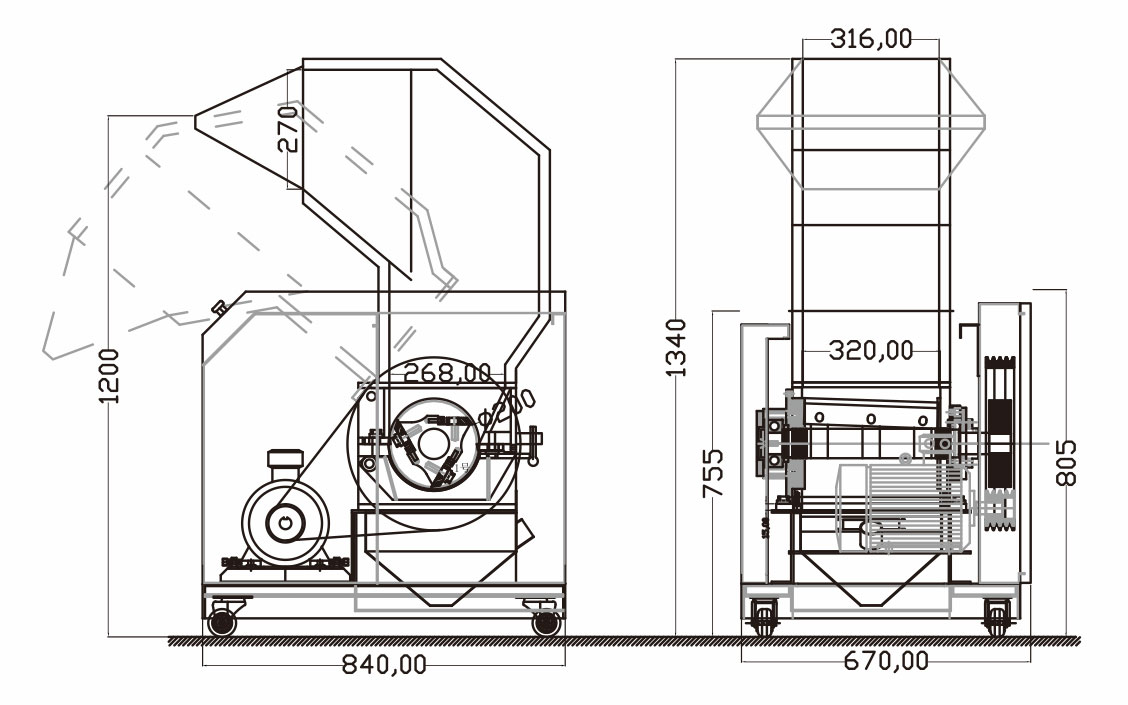

Dimensions	L*W*H mm	840*670*1340	840*820*1340

We reserve right to change specifications without prior notice.
