Project profile

XMP Series pipe section bar crusher rotor diameter is 600mm, multiple rotor width options Overall heavy welded

service hotline:+86-769-85096969

Detail description

XMP Series pipe / section bar crusher rotor diameter is 600mm, multiple rotor width options. Overall heavy welded steel hopper into the crushing chamber fixed angle with the horizontal and extends through the hopper feeding tubes and profiles is easy. Standard V-shaped cutting technology, Help to improve the efficiency and reduce the cutting recycling the dust content of recycled materials. Other standard equipment also includes the crushing cavity is easy to disassemble and bearing may reduce the risk of external contaminants from entering the crushing chamber.
Traditional crusher in operation do not apply to broken pipes and profiles of the long, long recovery for the size and bulk materials. Generally require feeding platform, the company developed the XMP series crusher designed close to the level of the feed hopper, easy to grow the size of the material feed. The machine during operation without the risk of blocking material, when the full stop after the material into the crushing chamber cavity emptied again until solid material and continue crushing.

- Special design of the rotor angle can be automatically fed into the hopper of the tube or profile drag crushing chamber.
- Reliable security

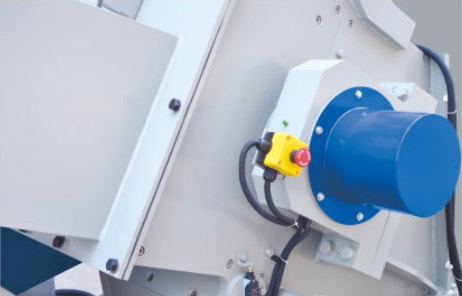

- Heavy solid rotor bearing mounted outside the crushing chamber, avoiding the body cavity into the bearing scrap lead to bearing damage, thereby protecting the crushing chamber and tool.

Mode   XMP600/600 XMP600/800 XMP600/1000
Drive power kw 37 45 75
Rotor diameter mm 600 600 600
Rotor width mm 600 800 1000
Number knife   5*2 5*2 5*2
Number knife   2*1 2*2 2*2
Size mm 500*430 700*430 900*430
Crushing cavity diameter mm 600*560 800*560 1000*560
Weight kg 4000 5000 6000

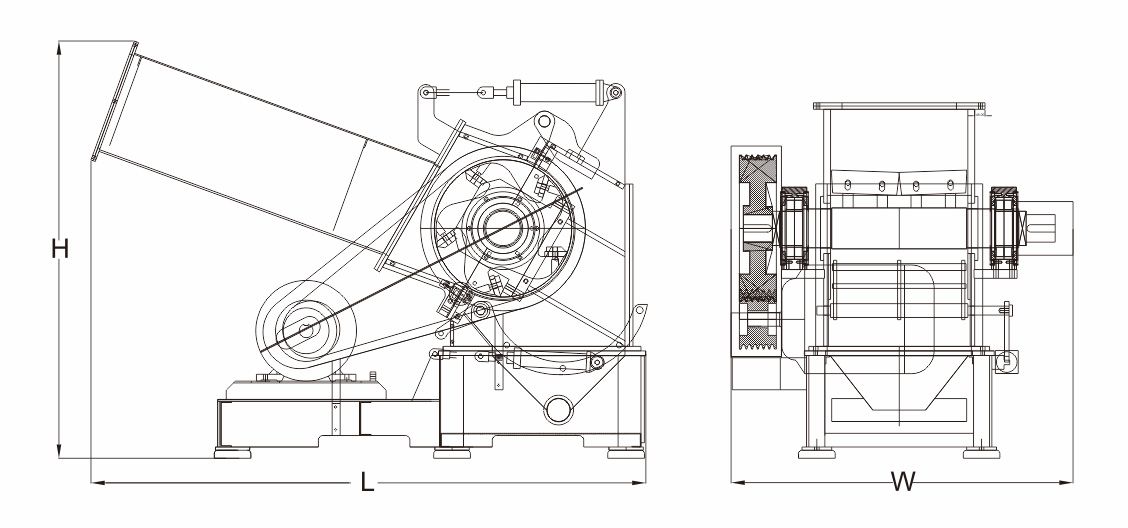

Dimensions L*W*H mm 2450*1500*1850 2450*1700*1850 2450*2000*1850
We reserve right to change specifications without prior notice.
