■ Built-in endosures: to ensure that the use noise reduction, and a unique tool designed to make it easier tool change;
　■ Simple tool to install: the adjustments using a tool to adjust the frame, the entire tool change process in the crusher, fixed knife and rotary cutter with high tensile strength steel, regrinding many times;
　■ The unique cutting mode: the tool of the rotor using the latest "V" shaped cutting technique, compared with the conventional tool, "V"-shaped design materials toward the center of the rotor while continuing cutting, "'"-shaped structure be able to reduce the wear of the tool and crushing chamber.

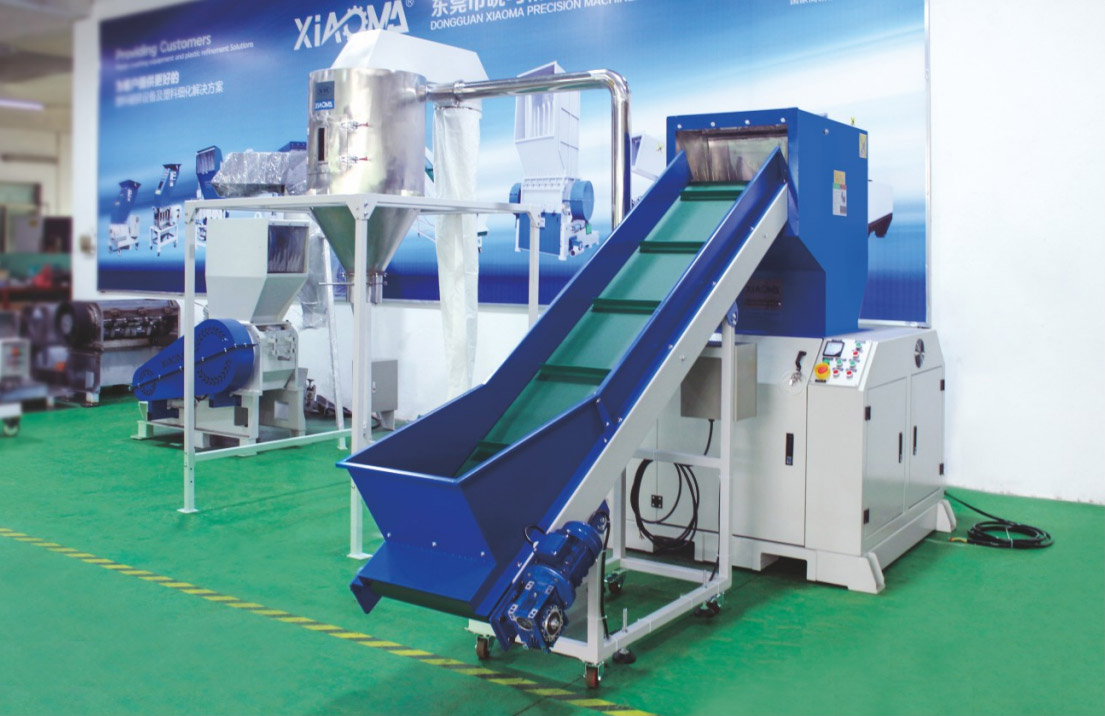

　The XMC300 600 comes standard, and Xiaoma also offers a range of auxiliary equipment such as conveyor belts, dust separators, and metal detectors.

Model		XMC300/300	XMC300/600	XMC300/800	XMC400/600	XMC400/800	XMC500/800
Drive power	kw	7.5	15	22	22	30	37
Rotor diameter	mm	300	300	300	400	400	500
Rotor width	mm	300	585	785	600	800	800
Number knife		3*1	3*2	3*2	3*2	3*2	5*2
Number knife		2*1	2*1	2*2	3*1	3*2	3*2
Size	mm	270*375	425*560	425*760	530*570	550*770	650*770
Crushing cavity diameter	mm	370*300	370*585	370*785	490*600	490*800	600*800
Weight	kg	1000	1250	1350	1850	2200	3300
Screen aperture	mm	10	10	10	10	10	12
Fan Installation		Random body installation			External stand-alone installation

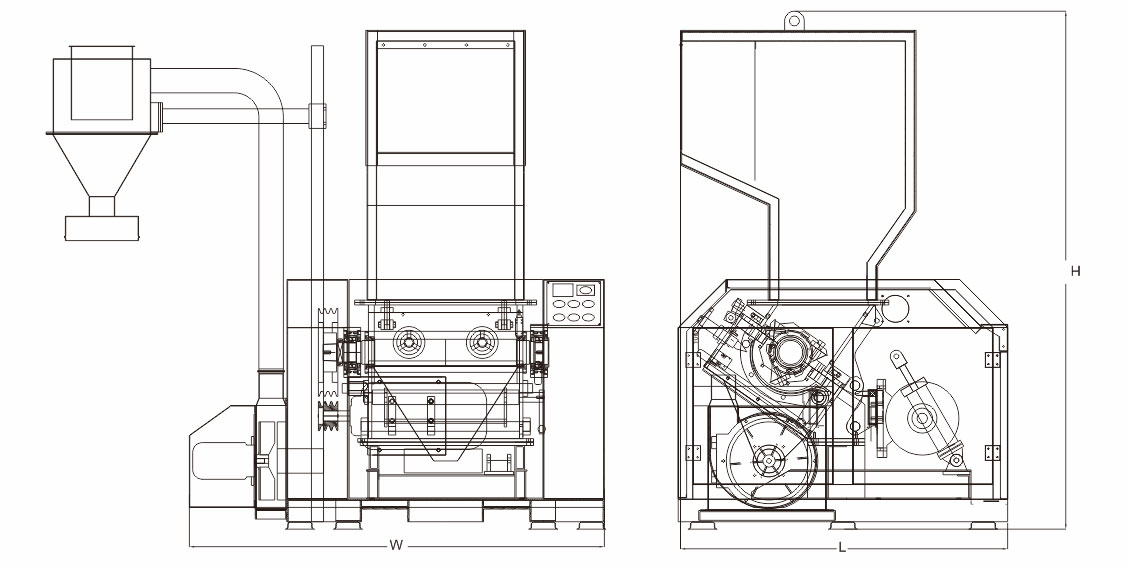

Dimensions	L*W*H mm	1350*1470*2050	1750*1350*2150	1900*1600*2250	1700*1650*2400	1650*1800*2550	2050*1910*2900

We reserve right to change specifications without prior notice.
